How to use USB to DMX cable (UTD-10/-11) with Freestyle

1.Download software

Link: www.freestylerdmx.be

2.Connection

Connect the USB to DMX cable to the computer, the blue light of the cable will light up.

If the blue light is not on, it is possible that the computer does not have a USB driver.

Please install the driver:FTDI Driver Install.rar

3.Select DMX output:

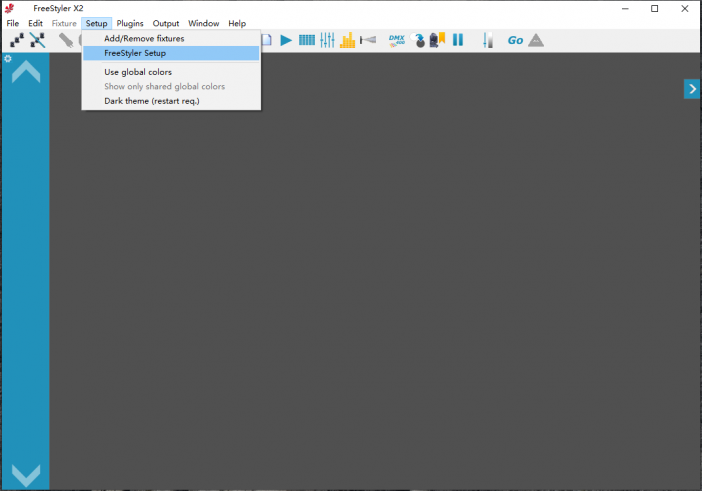

Open the software, click "FreeStyler Steup", select "JMS USB2DMX", then "Save":

4.Add DMX Fixtures

Click "Setup→Add/Remove Fixture" to add DMX lights, select the model you need.

Note: If you do not have the model number of your DMX light, configure the starting address according to the DMX address of your light. Please contact the manufacturer or manual of the DMX equipment you purchased to obtain the starting address.

5.Configure DMX device parameters

After adding a DMX device, you can change the parameters of the DMX channel and change the working status of the light.
